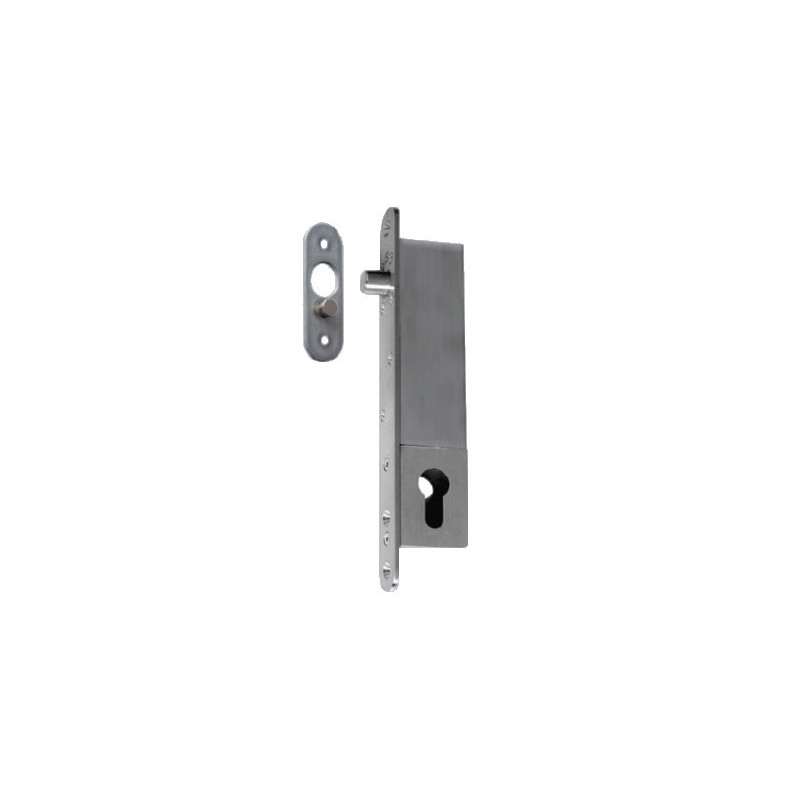

ELECTROMAGNETIC LOCK JEB-250K FOR 12-24V DC CYLINDER

• Reversible electromagnetic lock NC (open when voltage is applied)

• It allows you to open the bolt with a key during a power failure

• Vertical or horizontal bolt installation possible (bolt downwards)

• Door closing and opening signaling

• Lock against activation when the door is in the wrong position

• Surge protection

• Polarity change protection

         Current consumption - starting:
         850 mA for 12V DC
         600 mA for 24V DC

         Current consumption - operation:
        200 mA for 12V DC
        100 mA dla 24V DC

        Adjustable closing delay 0, 3, 6, 9 sec.
