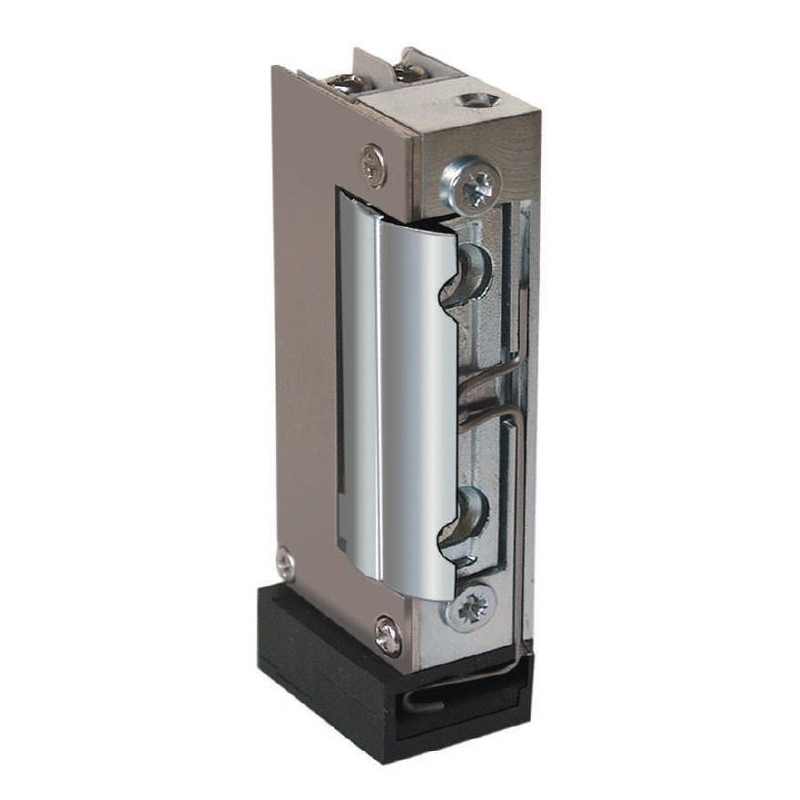

ELECTRIC STRIKE 1868RF FIRE MONITORING 24-48VAC-DC (24VDC - 24H) BASIC FIREPROOF
ELECTRIC STRIKE 1868RF FIRE MONITORING 24-48VAC-DC (24VDC - 24H) BASIC FIREPROOF
ELECTRIC STRIKE 1868RF FIRE MONITORING 24-48VAC-DC (24VDC - 24H) BASIC FIREPROOF
ELECTRIC STRIKE 1868RF FIRE MONITORING 24-48VAC-DC (24VDC - 24H) BASIC FIREPROOF

ELECTRIC STRIKE 1868RF FIRE MONITORING 24-48VAC-DC (24VDC - 24H) BASIC FIREPROOF

  • For fire and smoke-proof doors with 60-minute fire resistance (El260), mechanical strength up to 5000 N.
  • Universal (left and right).
  • Symmetrical.

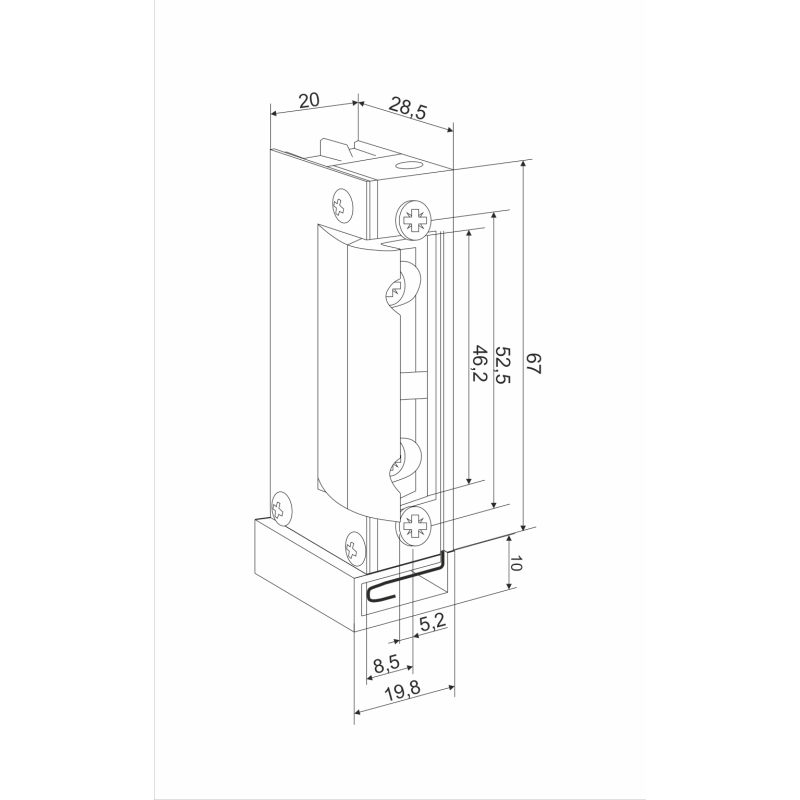

  • Height 67 mm.
  • NC fail-safe.
  • Mounting screw spacing 52.5 mm.
  • Latch adjustment range 3 mm.
  • Models for continuous use.
  • Power supply: 12, 24, 48 V AC/DC.
  • Durability: 200,000 cycles.
  • Usage category - class 3 - suitable for public buildings.
  • PN-EN 14846:2010 certified.
293.25 €
Tax included
