ELECTRIC STRIKE 1768 12-24VAC/DC LOW CONSUMPTION 12V MONITORING CONTINUOUS WORK AT12VDC

  • Reversible (left/right)
  • Symmetrical
  • With monitoring
  • Maximum load of the microswitch AC (125V) - 3A / DC (30V) - 2A

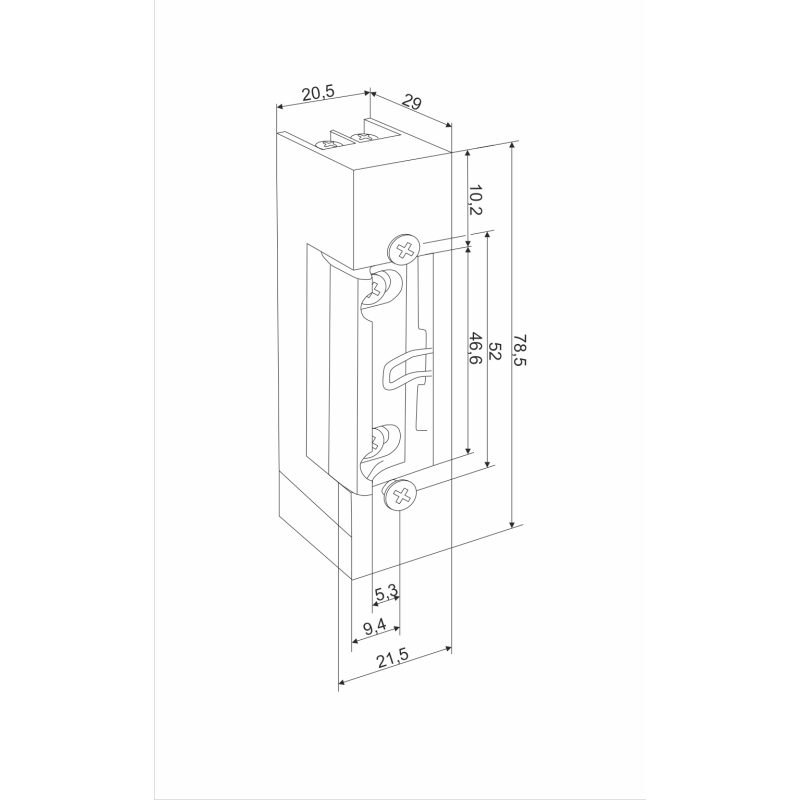

  • Height 78,5 mm, width 20.5 mm, intended for use in narrow profiles
  • Fail Secure NC or Fail Safe NO
  • Assembling screws distance 52 mm.
  • Latch adjustment 4 mm.
  • Low and very low power consumption
  • Durability: 200 000 cycles
  • Category of use - class 3 - suitable to public buildings
  • Certyficate of Conformity acc. to EN 14846

42.26 €
Tax included
