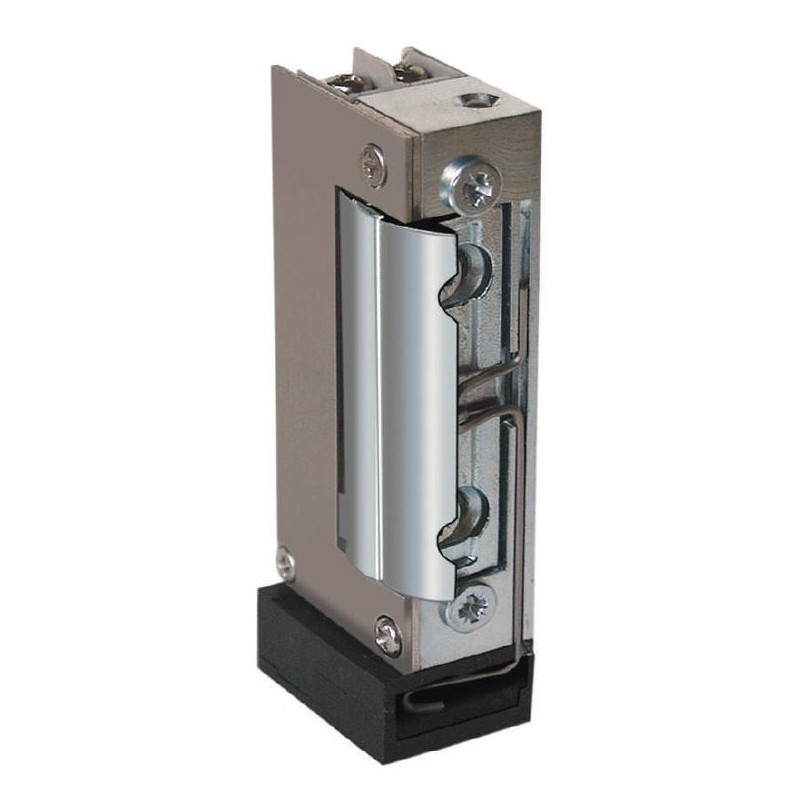

ELECTRIC STRIKE 1861RF FIRE MONITORING 24VDC FAIL SAFE FIREPROOF
ELECTRIC STRIKE 1861RF FIRE MONITORING 24VDC FAIL SAFE FIREPROOF
ELECTRIC STRIKE 1861RF FIRE MONITORING 24VDC FAIL SAFE FIREPROOF
ELECTRIC STRIKE 1861RF FIRE MONITORING 24VDC FAIL SAFE FIREPROOF

ELECTRIC STRIKE 1861RF FIRE MONITORING 24VDC FAIL SAFE FIREPROOF

  • For fire and smoke-resistant doors with a fire resistance of 60 min (El260), mechanical strength up to 5000 N.
  • Universal (left and right).
  • Symmetrical.

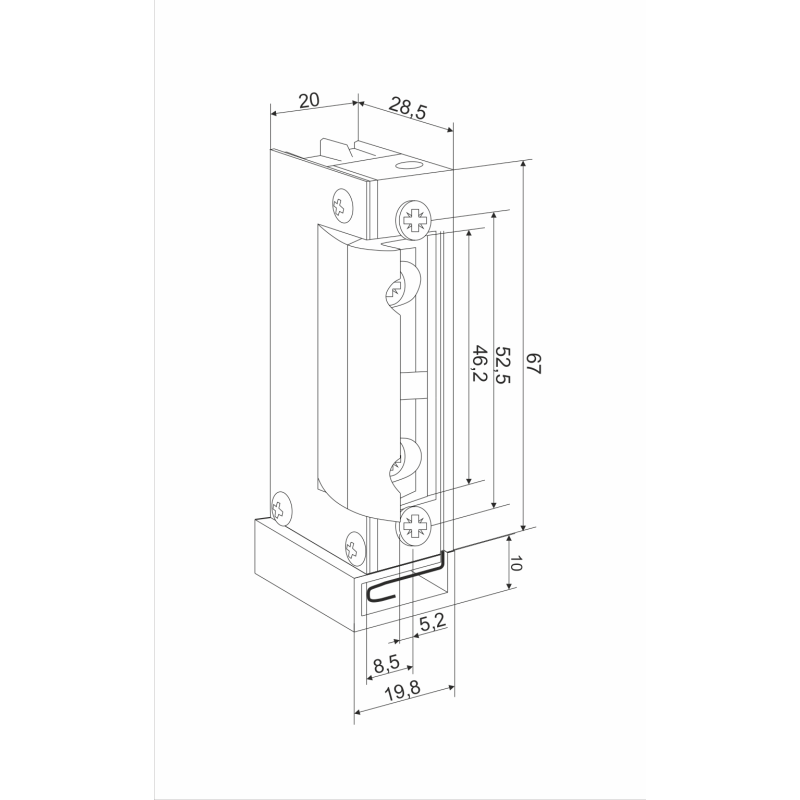

  • Height 67 mm.
  • Reversible NO.
  • Mounting screw spacing 52.5 mm.
  • Latch adjustment range 3 mm.
  • Power supply: 12, 24, 48 V AC/DC.
  • Models for continuous operation.
  • Operating temperature for reversible electric strikes is 60°C.
  • Durability: 200,000 cycles.
  • Usage category - class 3 - suitable for public buildings.
  • PN-EN 14846:2010 certified.
321.18 €
Tax included
